BMW E31 E32 E34 E36 E38 E39 E46 E60 E61 E65 Airbag seat sensor - PINS - UNIVERSAL

36,00 EUR incl. TAX
PCS.

BMW E31 E32 E34 E36 E38 E39 E46 E60 E61 E65

+ GRATIS

SEAT BELT SIMULATOR


Supported cars BMW European version:

E31 FROM 1989-199
E32 FROM 1986-1994
E34 FROM 1988-1996
E36 FROM 1990-2000
E36 FROM 1996-2002
E38 FROM 1994-2001
E39 FROM 1995-2003
E46 FROM 1998-2007
E60 FROM 2003-2005
E61 FROM 2003-2005
E65 FROM 2001-2005

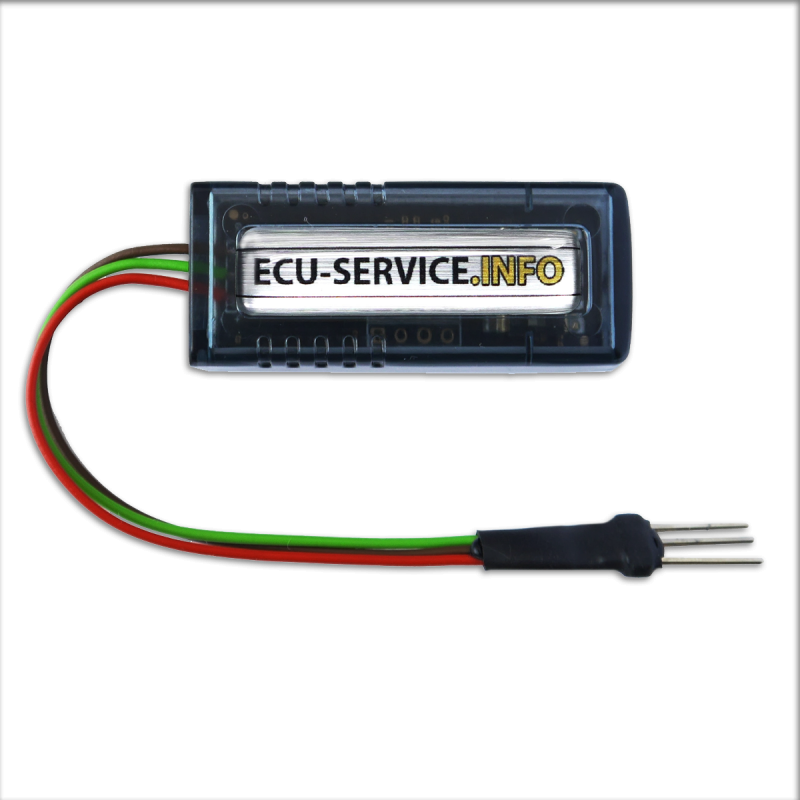

Thanks to this emulator you can check the correctness of the action of the airbag seat sensor. The emulator is used for diagnostic purposes.

Seat Occupancy Sensor Emulator is used to diagnose damage in the SRS system and allows you to confirm or exclude damage to the mat in the passenger seat.

The emulator connected in place of the original mat sends information to the airbag controller that:

* There is a working mat in the seat

* A passenger sitting on the seat

The emulator should be connected to the car's installation in place of the damaged mat. Find the seat mat connector under the passenger seat and connect the plug to the car's installation.

Cable marking:

Brown - GND (ground)

Green - signal

Red - 12V (power)

Before connecting the emulator use multimeter to check the correct power supply 12V, GND and signal.


Belt emulator is used to diagnosing damage in the SRS system and allows you to confirm or exclude damage to the seat belt buckle in the passenger seat.

Installation instructions:

- under the passenger seat, find the plug with two wires going to the seat belt buckle (black and red)

- unlock the latch and pull the plug out of the connector

- insert the pins from the emulator into the plug socket

- insert the plug back into the connector


Do not place the child seat on the front passenger seat. Passenger airbag during a collision will open.
