UNIVERSAL passenger mat emulator BMW MERCEDES MINI COOPER MAZDA

Price
32,00
incl. TAX
Quantity

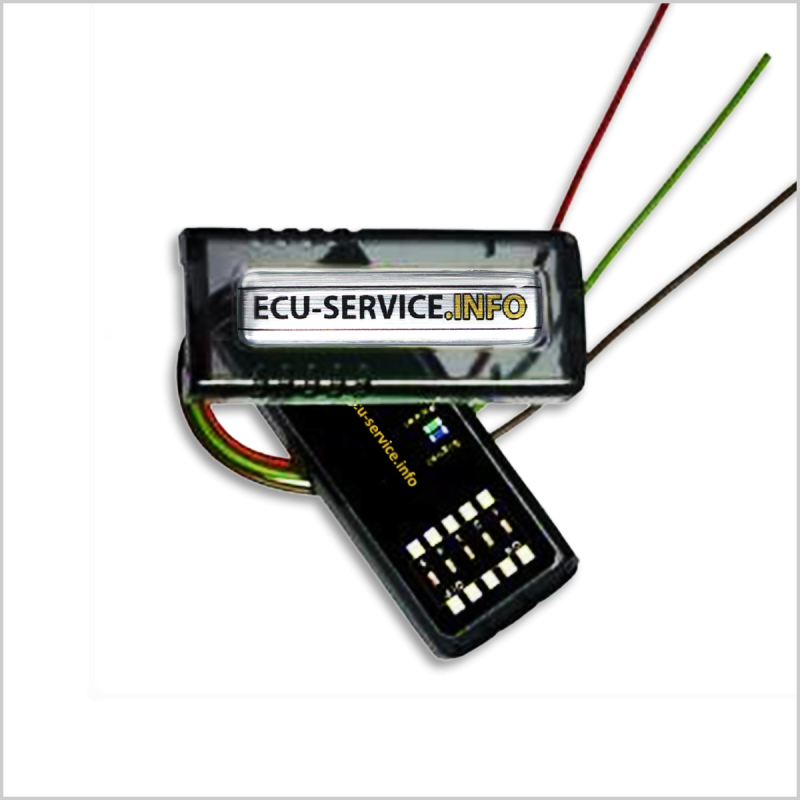

UNIVERSAL passenger mat emulator


Application:

BMW

MERCEDES

MINI COOPER

MAZDA


Thanks to this emulator you can check the correctness of the action of the airbag seat sensor. The emulator is used for diagnostic purposes.


The seat Occupancy Sensor Emulator is used to diagnose damage in the SRS system and allows you to confirm or exclude damage to the mat in the passenger seat.

The emulator connected in place of the original mat sends information to the airbag controller that:

* There is a working mat in the seat

* A passenger sitting on the seat


The emulator should be connected to the car's installation in place of the damaged mat. Find the seat mat connector under the passenger seat, remove the mat wires from the plug and check which ground, signal and power are. Then swap them with the emulator wires.


Wires designation:

Brown - GND (ground)

Green - signal

Red - 12V (power)


Before connecting the emulator use multimeter to check the correct power supply 12V, GND and signal.


Do not place the child seat on the front passenger seat. Passenger airbag during a collision will open.


The product made and developed by ECU SERVICE
